Installation

• Before Starting

Unplug all cables and remove the disc in the drive.

• Open the console

Flip the console back. Remove the five screws.

With VA0 Version remove the screw near the power plug

• Remove the cd drive

1. Unplug the 2 connectors on the left side(power and cd detection).
2. Unplug the ribon cable.

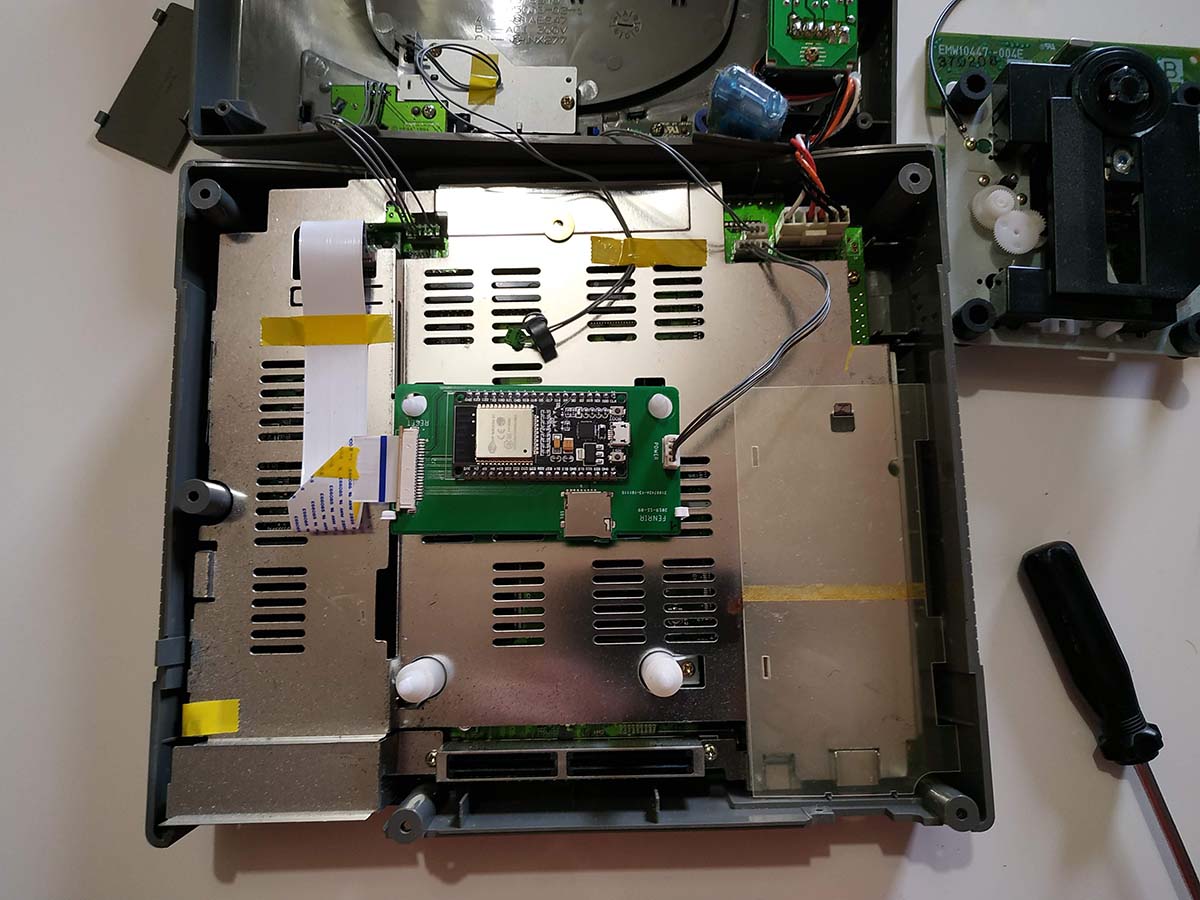

• Install Fenrir

1. Put Fenrir on the 3d printed holder.
2. Plug the power cable (4 pins connector).

Plug the ribon cable, fold on itself.
